Explain: This series collects all kinds of connection forms and structural couplings, nipples, nozzles, rotary couplings, thermowells and other products in the automatic control instrument pipeline system. It is an essential connecting piece in the pipeline with a wide range of varieties, specifications and applications. The short joint YZG14 series is essentially a pressure taking part. It is applicable to various measuring circuits, especially pressure, flow and liquid level.

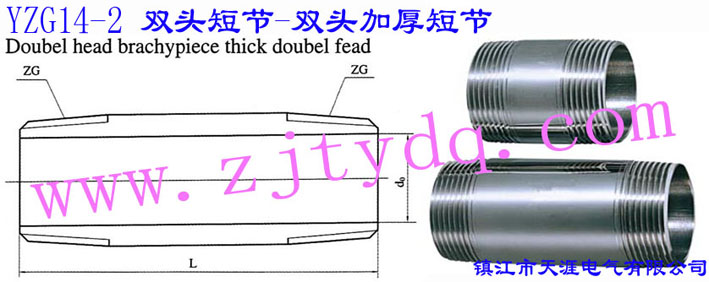

YZG14-2 雙頭短節•雙頭加厚短節 YZG14-2 Double Head Short-circuit • Thick Double Head Short-circuit
ZG
d0
L
代號Code No.
ZG1/4"
8
60
YZG14-2-ZG1/4"-60
ZG3/8"
10
60
YZG14-2-ZG3/8"-60
ZG1/2"
15
60
YZG14-2-ZG1/2"-60
ZG3/4"
20
70
YZG14-2-ZG3/4"-70
ZG1"
27
80
YZG14-2-ZG1"-80
ZG1 1/2"
31
120
YZG14-2-ZG1 1/2"-120
ZG2"
45
120
YZG14-2-ZG2"-120
ZG1/4"
3
60
YZG14-2-ZG1/4"-60-J
ZG3/8"
5
60
YZG14-2-ZG3/8"-60-J
ZG1/2"
10
60
YZG14-2-ZG1/2"-60-J
ZG3/4"
15
70
YZG14-2-ZG3/4"-70-J
ZG1"
22
80
YZG14-2-ZG1"-80-J
ZG1 1/2"
28
120
YZG14-2-ZG1 1/2"-120-J
ZG2"
40
120
YZG14-2-ZG2"-120-J
可指定長度L定制生產 YZG14-2 雙頭短節•雙頭加厚短節多用于壓力、流量、液面取源部件，需要兩頭用螺紋連接的場合，其規格與YZG14-1相同。代號中注“J”者為加厚短節，用途與規格同單頭短節，只是使用在壓力等級高的場合。 YZG14-2 double-head short joint • double-head thickened short joint is mostly used for pressure, flow and liquid level source components, and the two ends need to be connected with threads, and its specification is the same as YZG14-1. Those marked with "J" in the code are thickened nipples. The purpose and specification are the same as single-head nipples. They are only used in occasions with high pressure rating.
