DSJ-E卡簧式金屬軟管接頭(DGJ自固式管接頭)DSJ-E(DGJ) Connector with Circlips
DSJ-E卡簧式金屬軟管接頭(DGJ自固式管接頭)DSJ-E(DGJ) Connector with Circlips-鎮江市天涯電氣有限公司
產品編號：
N2012411152853
產品型號：
鎮江市天涯電氣有限公司
發布日期：
2024-3-20
查看數次：
5130
產 品 詳 細 介 紹：
金塑軟管接頭 >> 軟管接頭系列 >> DSJ-E卡簧式金屬軟管接頭(DGJ自固式管接頭) DSJ-E(DGJ) Connector with Circlips
說明： DSJ系列軟管接頭采用優質鋅合金壓鑄、金加工而成，表面一般采用鍍鋅、鍍硬鉻處理，特殊場所按要求表面處理，產品外形美觀、結構緊密；無氣孔、強度高，可與軟管、鋼管、箱體連接，具有密封性好、防震、防腐、防水、防塵等優點。規格大小可按設備、箱體、鋼管、軟管口徑、螺紋任意變動。一端連接軟管(鋼管)，一端外螺紋連接開關箱、電機、橋架等。(訂貨請注明軟管規格及螺紋尺寸)。 DSJ Hose Connector ismade of high-quality Zinc-Alloy by die-casting and male-processing.The surface would be treated by galvanization or hard chromate.Also it can be treated according to coustomers.It has beautiful surface and compact structure,no gas holes and high strength.It has so many advantages such as:good sealing features,anti-vibration,anti-corrosion,water-proof and dust-proof when it is connected to the flexible hose or steel tube.The size can be changed with the size of the equipment,the box body,the hose diameter or the thread.One end is connected to the hose(or the steel tubes),the other end connected to the switchbox,electric motor or cable tray.(Please specify the hose size and the thread specification while ordering.)

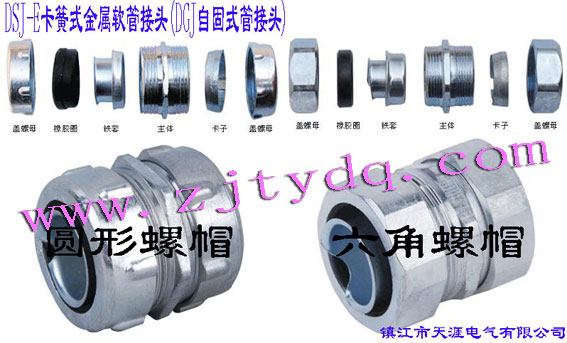

DSJ-E卡簧式金屬軟管接頭(DGJ自固式管接頭) DSJ-E(DGJ) Connector with Circlips DSJ-E卡簧式接頭用于將軟管與無螺紋的鋼管或設備出線口連接，省略套絲工序。 DSJ-E(DGJ) Connector with Circlips is used to connect the hose to the steel tubes without threads or the equipments' outlets.It is not necessary to use threads.
接頭規格
軟管規格
配鋼管規格
Size of connector
Size of hose
Size matched steel pipe
毫米mm
英寸inch
毫米mm
英寸inch
英寸inch
Ф10
3/8"
Ф10
G3/8"
G3/8"
Ф13
1/2"
Ф13
G 1/2"
G 1/2"
Ф15
1/2"
Ф15
G 1/2"
G 1/2"
Ф20
3/4"
Ф20
G 3/4"
G 3/4"
Ф25
1"
Ф25
G 1"
G 1"
Ф32
1 1/4"
Ф32
G 1 1/4"
G 1 1/4"
Ф38
1 1/2"
Ф38
G 1 1/2"
G 1 1/2"
Ф51
2"
Ф51
G 2"
G 2"
Ф64
2 1/2"
Ф64
G 2 1/2"
G 2 1/2"
Ф75
3"
Ф75
G 3"
G 3"
Ф100
4"
Ф100
G 4"
G 4"
注：特殊規格鋼管，根據用戶提供尺寸設計、制造 The connector can be fabricated according to the size determined by customers.
